DieXpert Automatic Die-Cutting Machine
Automatic flat-bed die-cutting, creasing & foil stamping. Engineered by YOCO, Shanghai — delivered, installed & serviced in India by Packronix.
What is a die cutter?
A flat-bed (platen) die-cutter presses a cutting forme against the sheet to cut, crease and emboss printed board, then strips the waste — producing clean, registered blanks ready for folding and gluing. The DieXpert Series (YOCO JY platform) spans paper, cardboard and corrugated, with optional in-line hot-foil stamping and automatic stripping.
The DieXpert Series is a complete flat-bed die-cutting range built on decades of Japanese die-cutter design (iijima & NIKKO). It spans the compact ⓘ60 through carton machines (JY-76/85/106) to big corrugated formats (JY-1450/1650/2100), plus the economy SD line — all with Mabeg lead-edge feeders. Configurations cover every job: plain die-cutting, with stripping (E), hot-foil stamping (T), foil + stripping (TE) and blanking (R/ER), supported by automatic logistics (breaker, turning table, pre-loader), load formers, pile turners and die-rubber installing machines. Every machine is CE and German GS certified — YOCO was the first Chinese die-cutter maker to achieve the GS safety certificate.
Key benefits
- Full range 600–1650 mm — paper & cardboard to corrugated
- Die-cut, crease, emboss and strip in one automatic pass
- Optional in-line hot-foil stamping (6 heating zones)
- Mabeg lead-edge feeder for accurate, high-speed feeding
- CE + German GS certified (first Chinese die-cutter with GS)
- Optional automatic logistics / non-stop delivery
Usage & characteristics
- 01Manufactured by YOCO (Shanghai) — a post-press specialist with a 30,000 m² factory and over 1,000 machines running worldwide, 60%+ exported.
- 02Built on cooperation with Japanese die-cutter makers iijima and NIKKO for proven design, assembly and reliability.
- 03Full product range: smallest 600 mm model for paper & cardboard up to the largest 1650 mm model for corrugated board.
- 04All YOCO JY-series machines are equipped with a Mabeg lead-edge feeder unit.
- 05CE and German GS certified — YOCO was the first die-cutter manufacturer in China to achieve the German GS safety certificate.
- 06Foil unwinding unit is inside the machine; foil changing and waste-foil handling are done outside for fast changeover.
- 07Big-area foil-stamping device available; up to 6 heating zones for even stamping.
- 08Automatic logistics system available across the die-cutting range.
- 09Non-stop delivery with over-ascending / over-descending protection and brush-assisted paper unloading for a tidy pile.
- 10Optional cold-foil unit and double-feeder configurations.
Applications & industries
Specifications
- Platform
- YOCO automatic flat-bed die-cutters (JY / ⓘ / SD)
- Size range
- ⓘ60 up to JY-2100 (paper / carton / corrugated)
- Configurations
- Plain · E (strip) · T (foil) · TE (foil+strip) · R/ER (blanking)
- Cutting pressure
- 200 – 400 tons by model
- Speeds
- Up to 7500 sheets/hr cutting · 6000/hr stamping
- Feeder
- Mabeg lead-edge feeder (top feeder on JY-1650E)
- Certification
- CE · German GS
- Peripherals
- Logistics (breaker/turntable/pre-loader) · load former · pile turner · die-rubber installer
Models
- ⓘ60 Compact (60 / 60T)Small-format automatic die-cutter — 60 (die-cut) and 60T (die-cut + foil stamping).

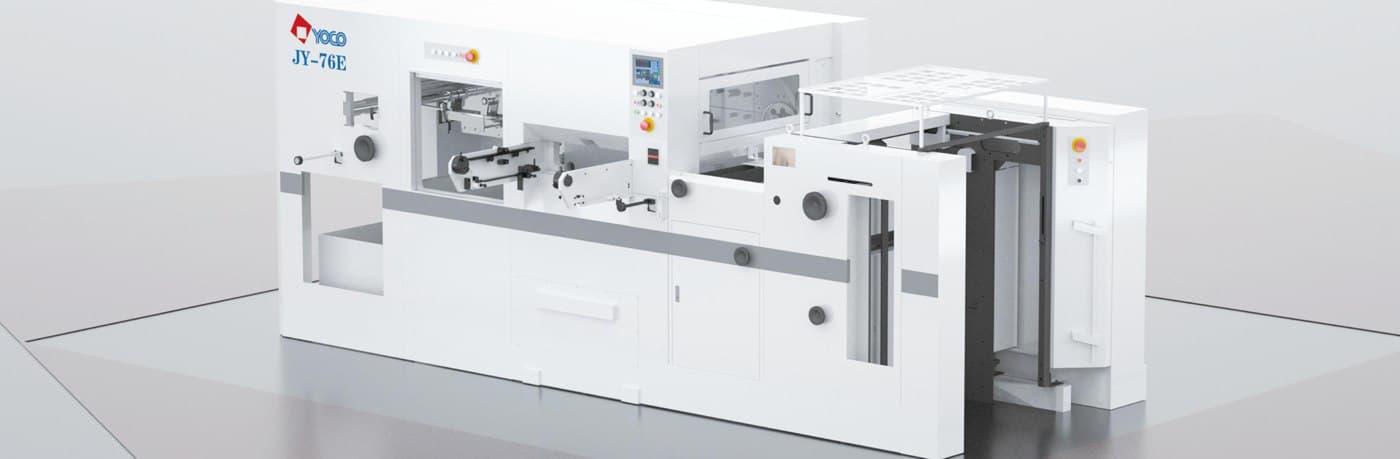

- JY E — Carton Die-Cutters (with stripping)Automatic die-cutters with stripping for paper & carton — JY-76/76E, JY-85/85E, JY-106/106E.

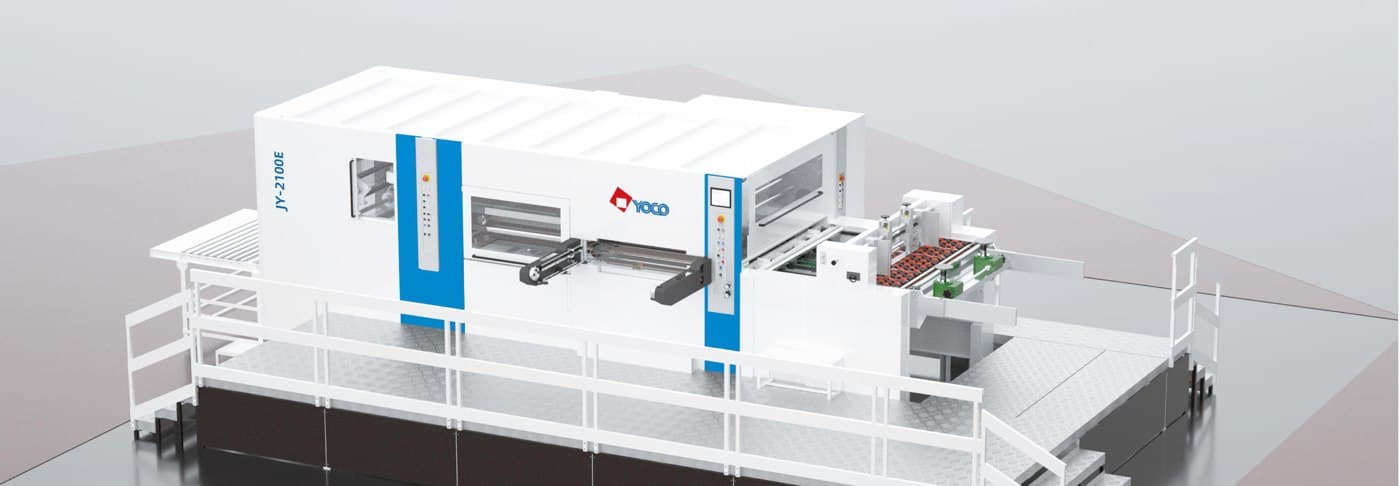

- JY E — Corrugated Die-CuttersLarge-format die-cutters with stripping for corrugated — JY-1450E, JY-1650E (top feeder), JY-2100E.

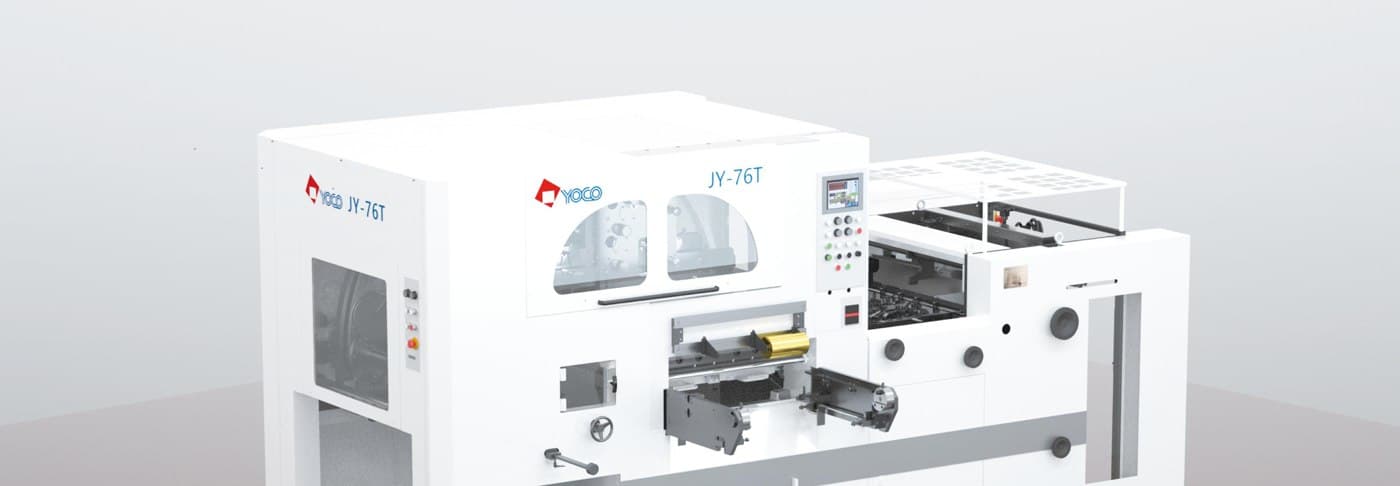

- JY T — Foil Stamping Die-CuttersAutomatic die-cutting + hot-foil stamping — JY-76T, JY-85T, JY-106T, JY-1450T.
- JY TE / R / ER — Foil+Strip & BlankingFull-finishing and blanking configurations — JY-106TE (foil + stripping), JY-106R and JY-106ER (with blanking).

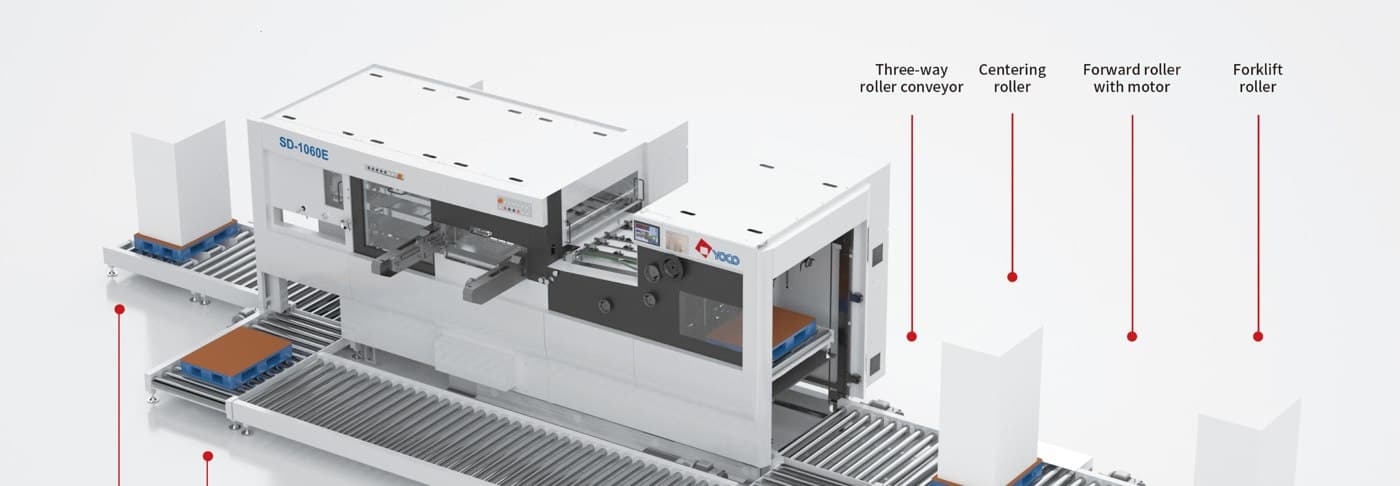

- SD Series — Economy Die-CuttersValue-line automatic die-cutters with stripping / foil — SD-106E, SD-106T, SD-120E.
Models
Models & specifications — DieXpert Series · Packronix × YOCO
Each tab is a distinct model type. Where a type comes in several sizes, they are compared side by side.

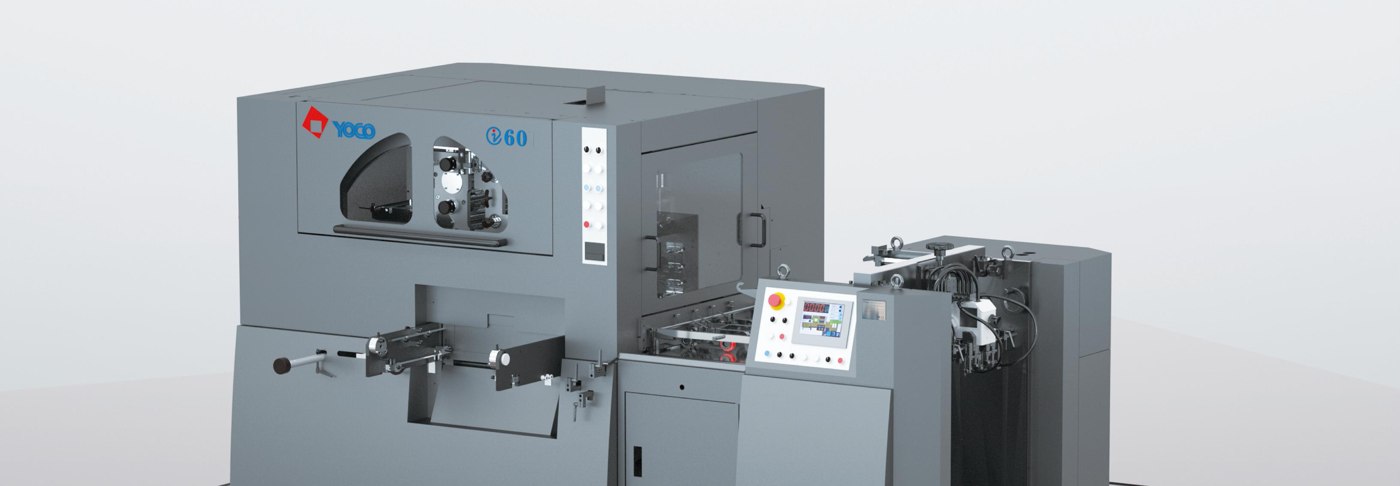

ⓘ60 Compact (60 / 60T)
Small-format automatic die-cutter — 60 (die-cut) and 60T (die-cut + foil stamping).
Key difference
The compact entry to automatic die-cutting — smallest footprint (3 m) and weight (~5 t), with an optional foil-stamping version (60T, 6 heating zones). Ideal for smaller sheets and tighter floors.
| Specification | ⓘ60 | ⓘ60T |
|---|---|---|
| Function | Die-cut · crease · strip | Die-cut · foil stamping |
| Heating zones | — | 6 areas |
| Max foil roll | — | Longitudinal 220 mm |
| Foil rollers | — | Standard 3 |
| Max pile (feeder/delivery) | 850 / 850 mm | 850 / 850 mm |
| Main motor | 7.5 kW | 7.5 kW |
| Total power | 13 kW | 30 kW |
| Dimensions | 3000 × 1600 × 2000 mm | 3000 × 1700 × 2000 mm |
| Weight | 4.9 t | 5.1 t |
ⓘ60 Compact (60 / 60T)
Available in 2 sizes. Request a tailored quotation, full technical drawing and ROI for the size you need. Installation, operator training and AMC included.
Inside the machine
Section by section
Mabeg Lead-Edge Feeder
Every JY-series machine uses a Mabeg lead-edge feeder for accurate, high-speed sheet feeding and reliable registration. Photocell chase positioning with automatic lock; pneumatic chase lock-up with air-floating plate slide (4+1 mm plate system selectable).
Die-Cutting Structure
Crank-movement, heavy-duty structure with stable pressure and high precision; imported hardened steel, wear-resistant. Safety die-cutting plate frame with rotation design for easy loading and replacement; pneumatic plate lock.
Hot-Foil Stamping Unit (T / TE)
In-line foil stamping with 10–12 heating zones (±1 °C on the touchscreen), synchronised foil feeding and machine speed, individually-controlled servo foil devices (longitudinal + transversal option), air blowing and stripping-angle control, foil-break and use-up alarms.
Stripping & Blanking (E / R / ER)
Automatic stripping removes waste in-line; R/ER blanking versions separate finished blanks from the sheet automatically — the least manual configuration.

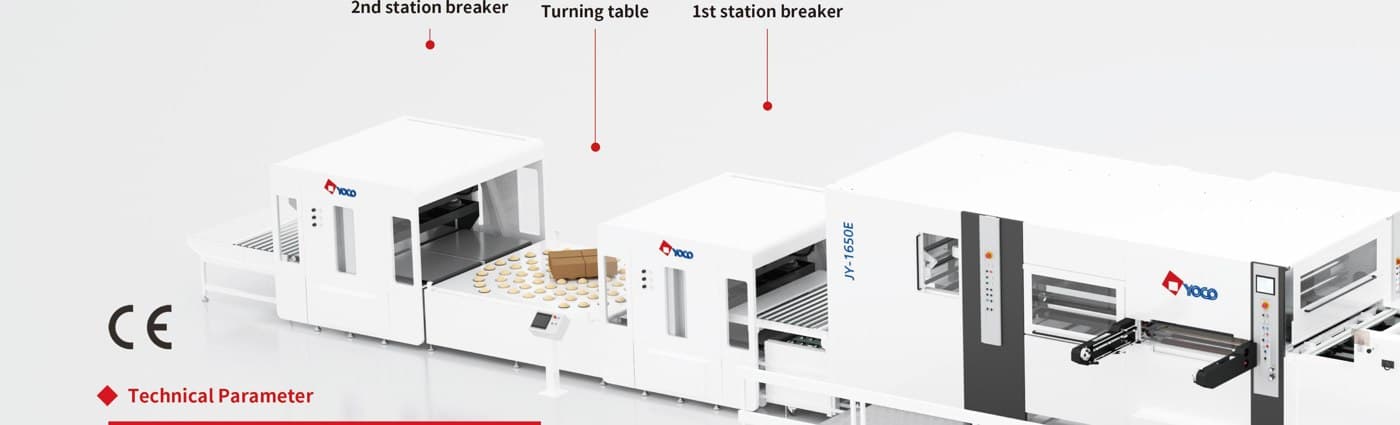

Automatic Logistics — Breaker · Turning Table · Pre-Loader
Line automation for the corrugated sizes: breaker and turning table up to 1700×1200 mm sheets (batch 20–300 mm, 6 bar, 6 kW), pre-loader up to 1650×1270 mm with 1400 kg pile weight, 2–9 mm corrugated, 18.1 m/min pile conveyor, 2000 mm max pile.
Semi-Auto Load Former
Forms and loads sheet piles for the feeder, cutting manual handling on high-volume work.
Die Rubber Installing Machine
Bench machine that fits rubber profiles to cutting formes quickly and consistently — faster die-making, better ejection.
Pile Turner & Flip Stacker
Turns and squares piles between print and die-cutting (dust removal, sheet alignment); flip stacker collects die-cut deliveries.
Non-Stop Delivery & Safety
Delivery with over-ascending/over-descending protection and brush-assisted unloading for a tidy pile. All machines carry European CE and German GS certificates.
See it in action
DieXpert Automatic Die-Cutting Machine — in operation
Gallery
Return on investment
The numbers that matter
Size range
Pressure
Certification
FAQ
Common questions
What does an automatic die-cutting machine do?
It presses a cutting forme against printed board to die-cut, crease and emboss it, then strips the waste — producing finished carton or corrugated blanks ready for folding and gluing.
What is the difference between the E, T, TE and R/ER models?
E die-cuts, creases and strips; T adds in-line hot-foil stamping (10–12 heating zones); TE combines foil stamping and stripping; R/ER add automatic blanking that separates finished blanks from the sheet.
What sizes does the DieXpert cover?
From the compact ⓘ60 through carton machines (JY-76, JY-85, JY-106) up to corrugated formats JY-1450, JY-1650 and JY-2100 — plus the economy SD series (SD-106E/T, SD-120E).
Is there an economical option?
Yes — the SD series offers proven automatic die-cutting (SD-106E/120E with stripping, SD-106T with foil) at a sharper price; the SD-120E runs 6500 sheets/hour at ±0.1 mm with 350 t pressure.
What automation is available around the die-cutter?
Automatic logistics (breaker, turning table, pre-loader up to 1650×1270 mm and 1400 kg piles), semi-auto load formers, pile turners, flip stackers and a die-rubber installing machine.
Is it certified for safety?
Yes — every machine carries the European CE and German GS certificates. YOCO was the first Chinese die-cutter maker to achieve the German GS safety certificate.
