MockXpert Series

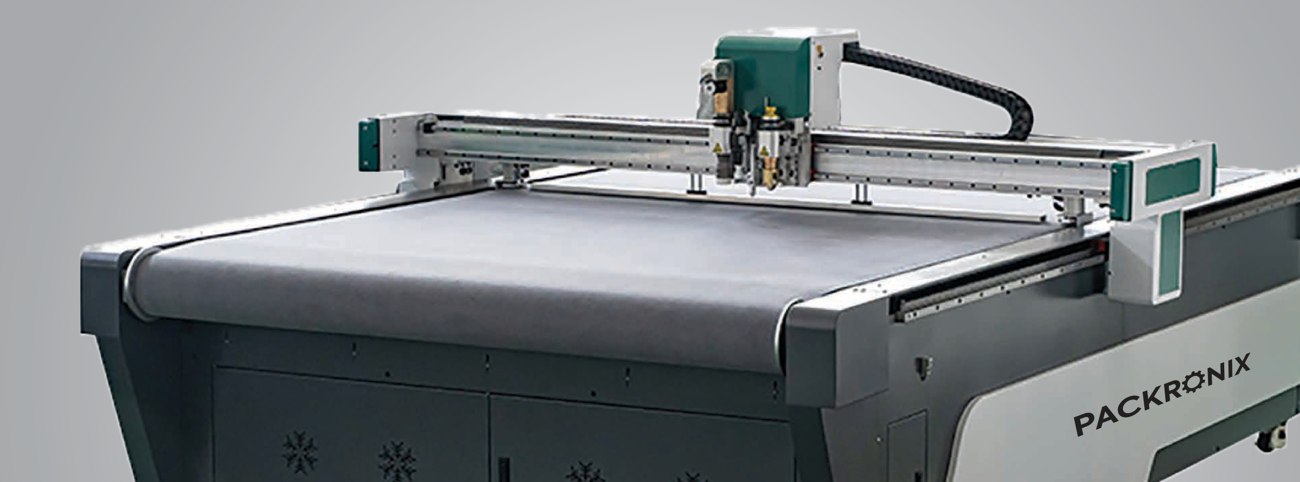

MockXpert Digital Cutting Machine
Digital sample making & short-run cutting, no die required.
What is a digital cutting / sample maker?
A digital cutting / sample-making table uses a knife and creasing tool driven by servo motors to cut packaging structures straight from a CAD file. It replaces the cost and lead-time of a physical cutting die for prototypes, mock-ups and short runs — letting converters approve structures and win business faster.
The MockXpert Series are double-head digital cutting machines (sample makers) that cut, crease, V-cut and perforate packaging straight from a CAD file — no cutting die. A heavy-duty cast-aluminium vacuum table holds the board; oscillating knife and creasing tools run at up to 1,500 mm/s to ≤0.1 mm accuracy. Clean knife cutting means no burnt edges and no fumes — far faster than laser for board. Three sizes (2516D, 1713D, 1209D) cover everything from large display work to compact desktop sample-making. 3-year warranty.
Key benefits
- Prototype, sample & short-run without a physical die
- Double-head — cut, crease, V-cut & perforate in one pass
- Clean knife cut — no burnt edges, no fumes; faster than laser
- Cast-aluminium vacuum table + Taiwan guides & Delta servos for accuracy
- Reads PLT / DXF / AI; CorelDRAW, Photoshop, AutoCAD, Tajima
- 3-year warranty · optional CCD camera for printed-sheet registration
Usage & characteristics
- 01Imported Taiwan square linear guides and Delta servo motors for high accuracy and stable performance.
- 02Robust, welded seamless steel structure ensures longevity and zero deformation.
- 03Honeycomb-structure, sound-absorbing, cast-aluminium platform.
- 04Easy installation, setup and operation.
- 05Infrared safety sensors and emergency stop.
- 06Clean knife cutting — no air pollution, no burnt edge, much faster than laser.
- 07Double head: cut, crease, V-cut and perforate from one CAD file.
- 08Reads PLT / DXF / AI from CorelDRAW, Photoshop, AutoCAD and Tajima.
Applications & industries
Specifications
- Models
- MockXpert 2516D / 1713D / 1209D (double-head)
- Table
- Fixed cast-aluminium vacuum table
- Cutting speed
- 0–1,500 mm/s (material dependent)
- Material thickness
- ≤ 50 mm
- Accuracy
- ≤ 0.1 mm
- Drive
- Taiwan Delta / Germany servo motors & drivers
- Transmission
- Taiwan linear square guide rails & racks
- Files / software
- PLT · DXF · AI — CorelDRAW, Photoshop, AutoCAD, Tajima
- Power
- 9 kW vacuum / 11 kW total · 220/380V
- Warranty
- 3 years
Models
- Double-Head Digital CuttingCut · crease · V-cut · perforate from a CAD file. Three sizes, same heads and tooling.
Models
Models & specifications — MockXpert Series
Each tab is a distinct model type. Where a type comes in several sizes, they are compared side by side.
Double-Head Digital Cutting
Cut · crease · V-cut · perforate from a CAD file. Three sizes, same heads and tooling.
Key difference
No cutting die, no plates — produce a finished sample or short run straight from artwork. Double oscillating heads cut, crease, V-cut and perforate in one pass; clean knife cut beats laser on board (no burnt edge, no fumes). Pick the bed size for your largest sheet.
| Specification | 2516D | 1713D | 1209D |
|---|---|---|---|
| Working area | 2500 × 1600 mm | 1700 × 1300 mm | 1200 × 900 mm |
| Heads | Double | Double | Double |
| Cutting speed | 0–1500 mm/s | 0–1500 mm/s | 0–1500 mm/s |
| Material thickness | ≤ 50 mm | ≤ 50 mm | ≤ 50 mm |
| Accuracy | ≤ 0.1 mm | ≤ 0.1 mm | ≤ 0.1 mm |
| Total power | 11 kW | 11 kW | 11 kW |
| Voltage | 220/380V | 220/380V | 220/380V |
| Warranty | 3 years | 3 years | 3 years |
Double-Head Digital Cutting
Available in 3 sizes. Request a tailored quotation, full technical drawing and ROI for the size you need. Installation, operator training and AMC included.
Inside the machine
Section by section

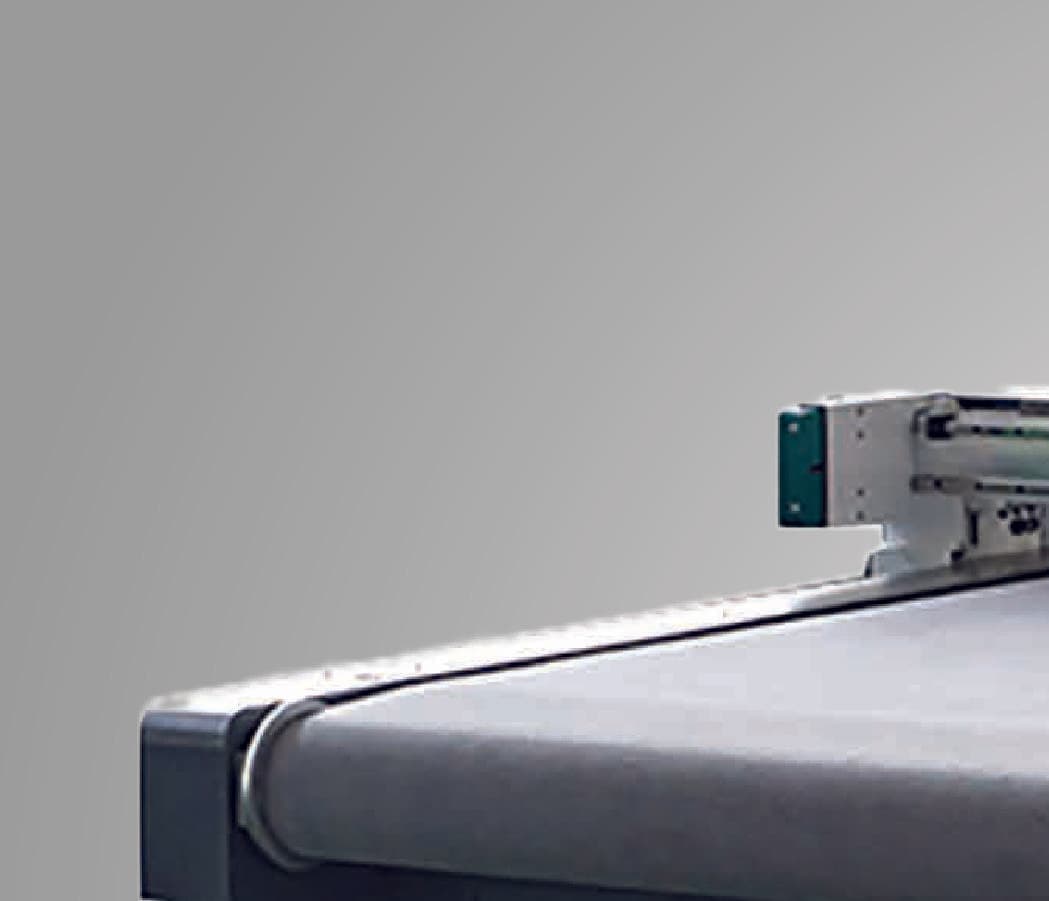

Cast-Aluminium Vacuum Table
Heavy-duty, honeycomb-structure, sound-absorbing cast-aluminium platform with a vacuum suction system that holds board flat and square for accurate cutting.
Premium Oscillating Cutting Tool
High-frequency oscillating knife (20 blades included) for clean, fast through-cutting of board, corrugated and composite materials — no burnt edge, no fumes.
Premium Creasing Tool
Three-wheel creasing tool lays accurate crease lines for fold-ready samples and short-run cartons.
V-Cut & Perforation
V-cut tool with perforation attachment for rigid-box bevels, tear lines and special structures in one workflow.
HD Touch Control + Software
HD touch control panel with MockXpert automatic typesetting and carton-design software; reads PLT, DXF and AI from CorelDRAW, Photoshop, AutoCAD and Tajima.
CCD Camera (optional)
Optional CCD camera reads printed registration marks so pre-printed sheets are cut precisely to the artwork.
See it in action
MockXpert Digital Cutting Machine — in operation
Gallery
Return on investment
The numbers that matter
Die cost
Accuracy
Warranty
FAQ
Common questions
How does a digital cutting machine work?
It drives an oscillating knife and creasing tool from a CAD file (PLT/DXF/AI) to cut, crease, V-cut and perforate packaging directly — no physical cutting die required.
What sizes does the MockXpert come in?
Three double-head sizes: 2516D (2500×1600 mm), 1713D (1700×1300 mm) and 1209D (1200×900 mm). Pick the bed to suit your largest sheet.
Is digital knife cutting better than laser for board?
For most packaging board, yes — knife cutting leaves no burnt edge, produces no fumes, and is much faster than laser.
Can it cut pre-printed sheets to the artwork?
Yes, with the optional CCD camera it reads printed registration marks and cuts precisely to the printed design.
What software does the MockXpert support?
It reads PLT, DXF and AI files and works with CorelDRAW, Photoshop, AutoCAD, Tajima and similar packaging design tools.
