CorrXpert Series
Mill Roll Stand
Holds and feeds the paper reels into the line.
What is a corrugated board line?
The mill roll stand carries large reels of liner and medium paper and feeds them under controlled tension into the single facer and double facer. Shaftless designs load reels without a central shaft for fast changes; electric and hydraulic versions handle the lifting, clamping and rotation.
A symmetric four-arm structure supports two reels at once for non-stop feeding; a single-point pneumatic brake and a fixed-torque clutch on the clamping/rotating mechanism make operation safe and reliable. Reels up to 1400 mm diameter and 2 T.
Key benefits
- Shaftless — fast reel loading & changes
- Four-arm structure holds two reels at once
- Single-point pneumatic braking
- Fixed-torque safety clutch on clamp & rotation
- Electric or hydraulic lift & clamp
- Reels to 1400 mm dia / 2 T
Usage & characteristics
- 01Holds reels of base paper up to 1400 mm diameter and 2 T.
- 02Single-slide symmetric four-arm structure supports two reels at once for non-stop feeding.
- 03Single-point pneumatic braking for controlled web tension.
- 04Arm clamping and rotating mechanism has a fixed-torque clutch — safe and reliable operation.
- 05Shaftless loading for fast reel changes.
- 06Electric (ZJ-F) or hydraulic (ZJ-V5B/V6B) lift and clamp.
Applications & industries
Specifications
- Types
- Electric (ZJ-F) · hydraulic (ZJ-V5B/V6B) shaftless
- Reel diameter
- up to 1400 mm
- Max reel weight
- 2 T
- Braking
- Single-point pneumatic
Models

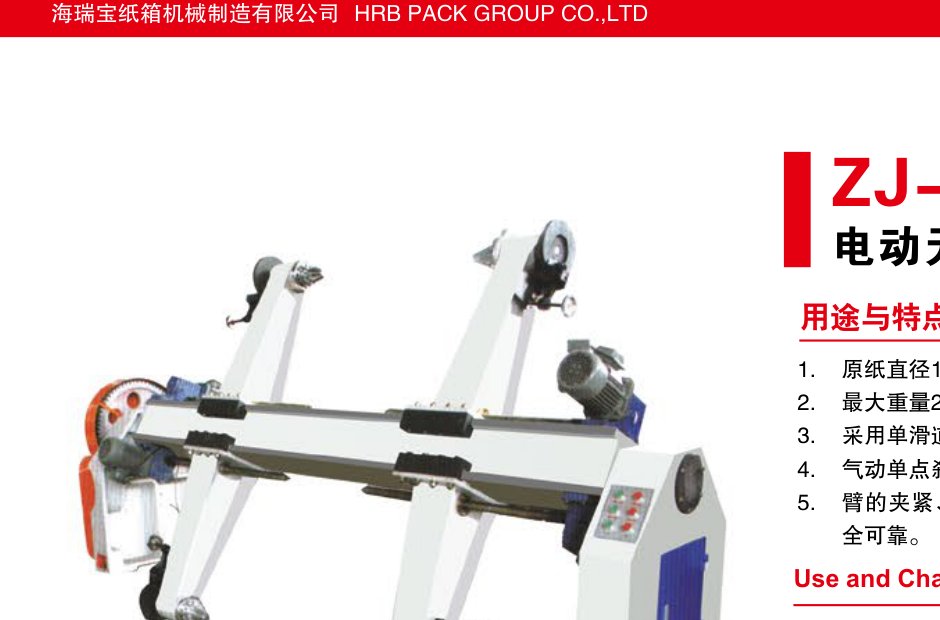

- Electric Shaftless — ZJ-FElectric shaftless mill roll stand.
- Hydraulic Shaftless — ZJ-V5B / V6BHydraulic shaftless mill roll stand for heavy reels.
Models
Models & specifications — CorrXpert Series
Each tab is a distinct model type. Where a type comes in several sizes, they are compared side by side.
Electric Shaftless — ZJ-F
Electric shaftless mill roll stand.
Key difference
Electric lift and clamp with a symmetric four-arm frame holding two reels at once for non-stop feeding — simple, reliable, fixed-torque safety clutch.
| Specification | |
|---|---|
| Reel diameter | 1400 mm |
| Max reel weight | 2 T |
| Structure | Symmetric four-arm, twin reel |
| Braking | Single-point pneumatic |
| Lift / clamp | Electric |
Electric Shaftless — ZJ-F
Request a tailored quotation, full technical drawing and ROI. Installation, operator training and AMC included.
See it in action
Mill Roll Stand — in operation
Gallery
Return on investment
The numbers that matter
FAQ
Common questions
What is a mill roll stand?
It holds the reels of base paper and feeds the web, under tension, into the corrugated line. Shaftless designs allow fast reel changes.
Electric or hydraulic — which?
Electric (ZJ-F) is simple and reliable for most lines; hydraulic (ZJ-V5B/V6B) suits heavier reels and higher volumes.
Request a quote
Interested in the Mill Roll Stand?
Tell us your board type, volumes and box styles. We reply within one business day with specs, pricing and a tailored ROI — plus installation and service terms.
