TapeXpert Series

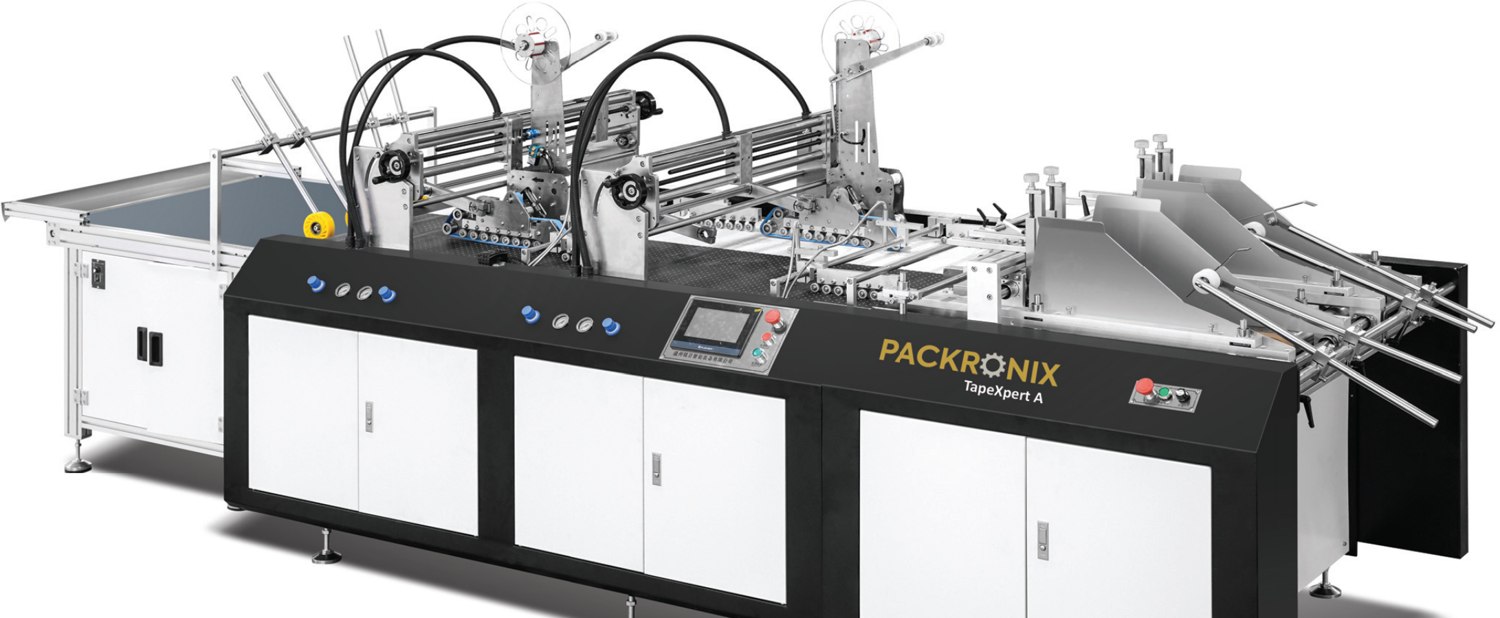

TapeXpert Double-Sided Tape Pasting Machine
Automatic multihead double-sided tape pasting.
What is a tape pasting machine?
A double-sided tape pasting machine automatically lays double-sided adhesive tape (with release liner) onto board blanks at high speed and precise position — replacing slow, inconsistent hand-taping. The pasted tape lets the end user or a downstream line close cartons, envelope bags and document bags simply by peeling the liner and pressing. The TapeXpert is a multihead machine that pastes several tape strips in one pass.

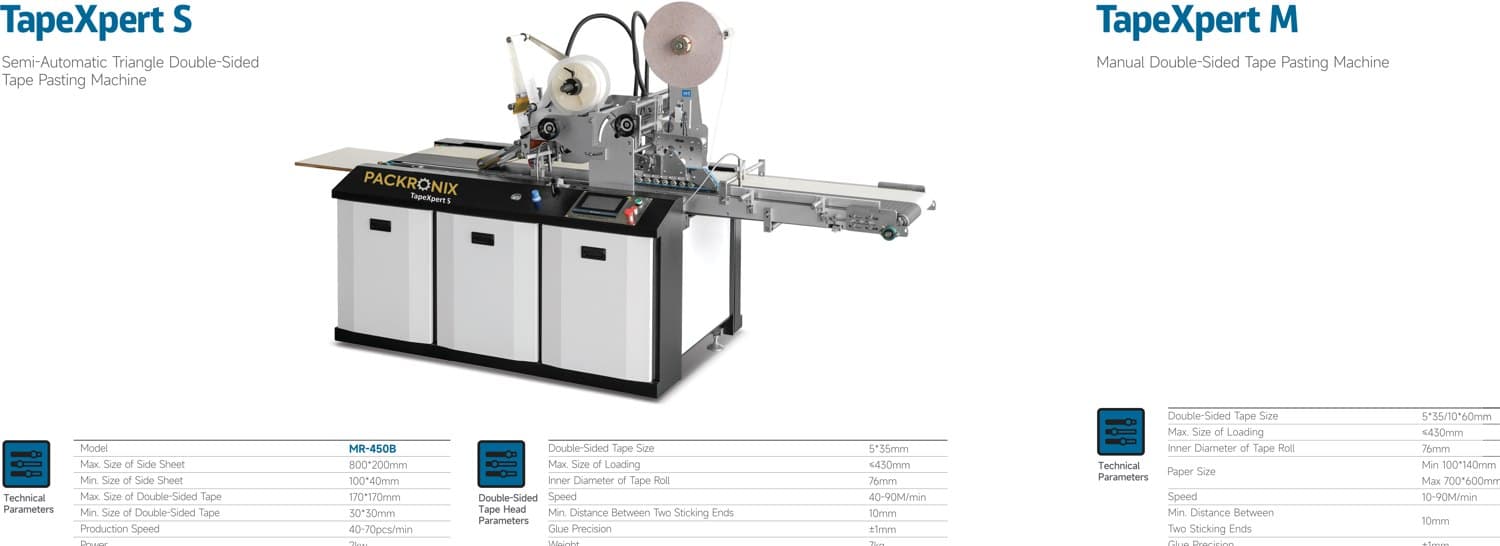

The TapeXpert Series (TapeXpert 850 A and 1200 A, plus S and M configurations) pastes double-sided tape onto cardboard over 200 g/m² and B/E-flute corrugated at up to 90 m/min. A high-friction belt feeder ensures stable feeding; a quick-change adhesive head rotates 45° by one key to swap tape in ~30 seconds; and a straight-out "fish-scale" delivery collects yardage neatly for easy take-off. Placement is held to ±1.5 mm.
Key benefits
- Automatic multihead double-sided tape pasting in one pass
- Up to 90 m/min on cardboard & B/E-flute corrugated
- ±1.5 mm tape placement accuracy
- Quick-change adhesive head — rotates 45°, swap tape in ~30 sec
- Straight-out fish-scale collection for neat yardage take-off
- Tape width options 5–35 mm / 10–60 mm
Usage & characteristics
- 01Automatic multihead pasting — several double-sided tape strips applied in one pass.
- 02High-friction belt feeding for smooth, stable paper transport.
- 03Quick tape change — the adhesive head rotates 45° by one key, swapping tape in ~30 seconds.
- 04Straight-out "fish-scale" delivery collects pasted sheets in a neat overlap for easy take-off.
- 05Placement accuracy ±1.5 mm; pastes cardboard over 200 g/m² and B/E/C-flute corrugated.
- 06Triangle (MR-450A) and manual (SD-700) options for long strips, rotary-stick and short runs.
Applications & industries
Specifications
- Models
- TapeXpert 850 A / 1200 A (+ S, M)
- Material
- Cardboard over 200 g/m²; B/E/C-flute corrugated
- Min paper size
- 140 × 100 mm
- Max paper size
- 850 × 850 mm (850 A)
- Working width
- 850 mm (850 A)
- Conveyor speed
- Up to 90 m/min
- Tape width
- 5–35 mm / 10–60 mm
- Placement accuracy
- ±1.5 mm
- Air supply
- Min. 6 bar
- Total power
- 4 kW (220V AC)
- Weight
- 1200 kg (850 A)
- Machine size
- 4500 × 1400 × 1400 mm (850 A)
Models
- DT-850 / 1200 (Automatic Multihead)Automatic multihead double-sided tape pasting machine — high speed, two working widths.
- MR-450A (Automatic Triangle)Automatic triangle double-sided tape pasting machine — for long strips and small / rotary-stick work.
- SD-700 (Manual)Manual double-sided tape pasting machine — entry-level, flexible short runs.
Models
Models & specifications — TapeXpert Series
Each tab is a distinct model type. Where a type comes in several sizes, they are compared side by side.
DT-850 / 1200 (Automatic Multihead)
Automatic multihead double-sided tape pasting machine — high speed, two working widths.
Key difference
The high-volume choice — fully automatic, up to 90 m/min, pasting several tape strips in a single pass. Pick 850 or 1200 mm working width.
| Specification | DT-850 | DT-1200 |
|---|---|---|
| Type | Automatic multihead | Automatic multihead |
| Material | >200 g/m²; B/E/C-flute | >200 g/m²; B/E/C-flute |
| Min paper size | 140 × 100 mm | 140 × 100 mm |
| Max paper size | 850 × 850 mm | 1200 × 850 mm |
| Working width | 850 mm | 1200 mm |
| Conveyor speed | Up to 90 m/min | Up to 90 m/min |
| Tape width | 5–35 / 10–60 mm | 5–35 / 10–60 mm |
| Placement accuracy | ±1.5 mm | ±1.5 mm |
| Air supply | Min. 6 bar | Min. 6 bar |
| Total power | 4 kW (220V AC) | 4 kW (220V AC) |
| Weight | 1200 kg | 1800 kg |
| Machine size | 4500 × 1400 × 1400 mm | 4500 × 1800 × 1400 mm |
DT-850 / 1200 (Automatic Multihead)
Available in 2 sizes. Request a tailored quotation, full technical drawing and ROI for the size you need. Installation, operator training and AMC included.
Inside the machine
Section by section
Feeding Mechanism
High-friction belt feeding for smooth, stable paper transport and clean output, even at speed.
Quick Tape Change
The adhesive head rotates 45° by one key, so the double-sided tape roll can be swapped in about 30 seconds — minimal downtime between jobs.
Fish-Scale Delivery
An independent imported belt collects pasted sheets in a neat overlapping “fish-scale” stack for easy take-off and tidy transport (optional points function).
See it in action
TapeXpert Double-Sided Tape Pasting Machine — in operation
Gallery
Return on investment
The numbers that matter
Speed
Tape change
Accuracy
FAQ
Common questions
What does a double-sided tape pasting machine do?
It automatically applies strips of double-sided adhesive tape (with release liner) onto board blanks — cartons, envelope bags, document bags — so they can later be sealed or assembled by peeling the liner and pressing. It replaces slow, inconsistent hand-taping.
How fast is the TapeXpert?
Up to 90 m/min, pasting cardboard over 200 g/m² and B/E/C-flute corrugated, with multihead pasting in a single pass.
How quickly can the tape be changed?
The adhesive head rotates 45° by one key, so tape can be swapped in about 30 seconds.
What can the TapeXpert paste tape onto?

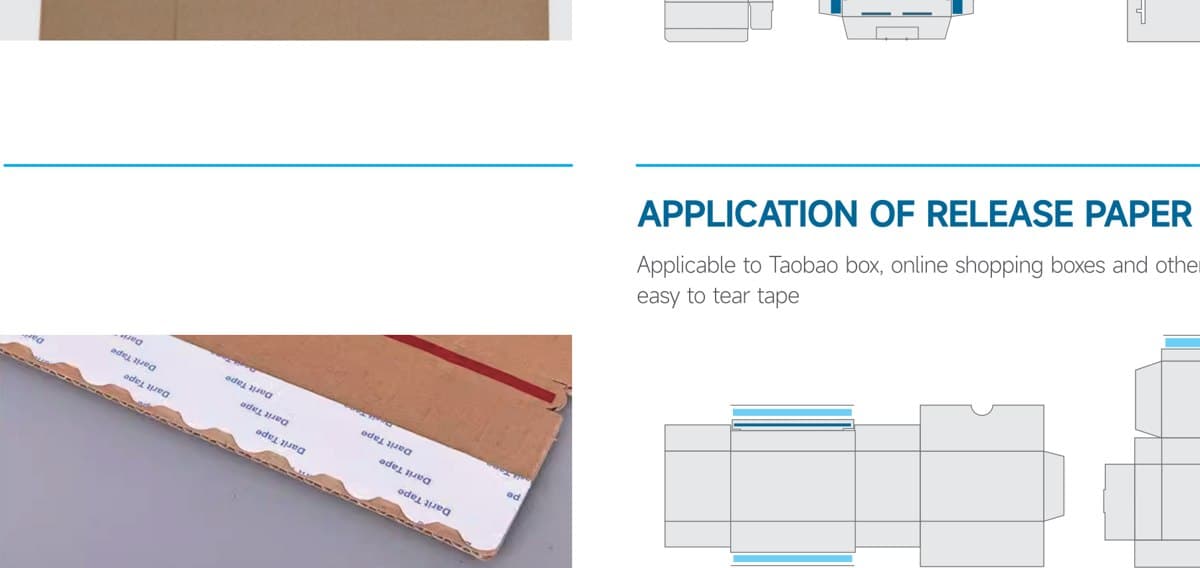

Cardboard cartons, envelope and courier bags, document bags and similar — for self-seal packaging and assembly. It also supports release-paper glue pasting.
