PrintXpert Flexo Printer-Slotter Die Cutter
Flexo print, slot & die-cut corrugated in one pass.
What is a flexo printer-slotter?
A flexo printer-slotter die cutter feeds corrugated sheets through flexographic print units, then slotting and die-cutting sections, producing printed and cut box blanks. The PrintXpert comes in lead-edge and chain-feed configurations across 920/1224/1424 widths, with high-definition multi-colour printing.
PrintXpert machines print to ≤±0.5 mm registration with ceramic anilox rollers and doctor-blade ink systems, then slot and die-cut to ≤±1.0 mm. Hardened, ground drive gears (>HRC60), automatic zero-set and electric clearance adjustment give reliable, repeatable output. Lead-edge feed runs up to 120 pcs/min; chain feed suits heavier or warped board.
Key benefits
- Print + slot + die-cut in one pass
- Lead-edge feed up to 120 pcs/min
- High-definition flexo print, ≤±0.5 mm registration
- Ceramic anilox + doctor-blade ink system
- Hardened ground gears (>HRC60), auto zero-set
- 920 / 1224 / 1424 widths; corrugated 2–12 mm

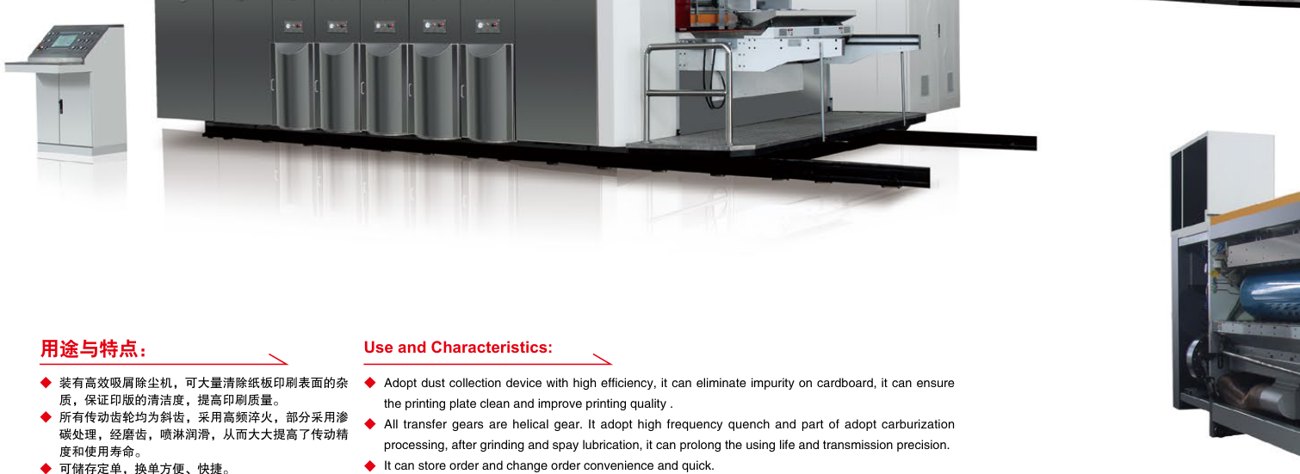

Usage & characteristics
- 01High-quality materials and fittings throughout the machine.
- 02Drive gears are hardened and ground (hardness >HRC60) for long life.
- 03Automatic zero-set; all clearances adjustable manually or electrically.
- 04Printing roller hanging-plate device with rubber-roller ink-uniforming system.
- 05Brand metal anilox roller — surface-ground, patterned and hard-chrome plated.
- 06Ink-gap, print-pressure and guide-roller gaps adjusted by two-stage worm-gear with dial display (0–10 mm).
- 07Plate-wash reset with computer position memory; ink-shortage alarm.
- 08Built for high operation, reliability and safety; rapid, convenient order changing.
Applications & industries
Specifications
- Models
- 920 / 1224 / 1424 (lead-edge & chain-feed)
- Registration
- ≤ ±0.5 mm
- Slot / die-cut precision
- ≤ ±1.0 mm
- Printing plate
- 3.94 mm
- Corrugated thickness
- 2–12 mm
- Gears
- Hardened & ground (>HRC60)
Models
- Lead-Edge FeedLead-edge paper feed for the highest speed and registration.
- Chain FeedSemi-automatic chain feed — robust for heavier or warped board.
Models
Models & specifications — PrintXpert Series
Each tab is a distinct model type. Where a type comes in several sizes, they are compared side by side.
Lead-Edge Feed
Lead-edge paper feed for the highest speed and registration.
Key difference
The high-speed choice — lead-edge feeding runs up to 120 pcs/min with tight ±0.5 mm registration. Pick for long, high-quality print runs.
| Specification | 920 | 1224 | 1424 |
|---|---|---|---|
| Max speed | 120 pcs/min | 120 pcs/min | 120 pcs/min |
| Max feeding size | 900×2000 mm | 1200×2400 mm | 1400×2400 mm |
| Max slot depth | 300 mm | 320 mm | 410 mm |
| Registration | ≤±0.5 mm | ≤±0.5 mm | ≤±0.5 mm |
| Plate thickness | 3.94 mm | 3.94 mm | 3.94 mm |
Lead-Edge Feed
Available in 3 sizes. Request a tailored quotation, full technical drawing and ROI for the size you need. Installation, operator training and AMC included.
Inside the machine
Section by section
Feeder Unit
Lead-edge or chain feed with lateral positioning to guarantee accurate sheet feed, plus automatic counting.
Printer Unit
Vacuum-transport printing with ceramic anilox rollers and doctor blade; electric planetary phase adjustment with digital position memory and automatic plate-wash reset.
Slotting & Die-Cut Unit
Slotting and rotary die-cutting to ≤±1.0 mm, with manual or electric clearance adjustment and automatic zero-set.
See it in action
PrintXpert Flexo Printer-Slotter Die Cutter — in operation
Gallery
Return on investment
The numbers that matter
Speed
Registration
In one pass
FAQ
Common questions
What is a flexo printer-slotter die cutter?
It prints (flexography), slots and die-cuts corrugated board sheets in a single pass, turning plain board into printed, ready-to-fold box blanks.
What is the difference between lead-edge and chain feed?
Lead-edge feed is faster (up to 120 pcs/min) with tighter registration for quality runs; chain feed (60 pcs/min) is more robust for heavier or warped board.
What print registration does the PrintXpert hold?
Registration is held to ≤±0.5 mm, with slotting and die-cutting to ≤±1.0 mm.
