CorrXpert Series
Slitter-Scorer & Cut-off
Slits, scores and cuts the board web to size.
What is a corrugated board line?
After the double facer, the continuous board web is slit to width and scored (creased) along the run, then cut to length across the web. The ZQS thin-blade NC slitter-scorer gives clean cuts and crisp creases; the NC-120 helical computer cross-cutter delivers square sheets.
The ZQS runs at 120–150 m/min, 1400–2200 mm wide, with knife configurations of four-knife/six-line, five/eight or six/ten, plus an automatic blade-sharpening system that grinds without stopping the line. The NC-120 helical-knife computer cut-off cleanly cross-cuts board to programmed lengths.
Key benefits
- Thin-blade slitting — clean, smooth cuts
- In-line scoring (4-6 / 5-8 / 6-10 knife-line options)
- Automatic blade sharpening without stopping
- NC helical cross-cutter for square sheets
- Electric horizontal shift to follow web tracking
- 1400–2200 mm width, 120–150 m/min
Usage & characteristics
- 01Design speed 120–150 m/min, effective width 1400–2200 mm.
- 02Knife-wheel configurations: four-knife/six-line, five-knife/eight-line or six-knife/ten-line.
- 03Novel thin-blade high-speed cutting gives a flat, smooth incision.
- 04Automatic sharpening system grinds the blade during production without stopping; pneumatic control sets the interval and grinding time.
- 05Overall electric horizontal shift follows paper tracking / deviation.
- 06NC-120 helical-knife computer cross-cutter cuts board to programmed lengths for square sheets.
Applications & industries
Specifications
- Slitter-scorer
- ZQS thin-blade NC
- Cross-cutter
- NC-120 helical computer
- Speed
- 120–150 m/min
- Width
- 1400–2200 mm
- Knife config
- 4-6 / 5-8 / 6-10 knife-line
Models
- Thin-Blade Slitter-Scorer — ZQSElectric-adjust thin-blade slitter-scorer with auto sharpening.
- NC Cross-Cutter — NC-120Computer helical-knife cross-cutter.
Models
Models & specifications — CorrXpert Series
Each tab is a distinct model type. Where a type comes in several sizes, they are compared side by side.

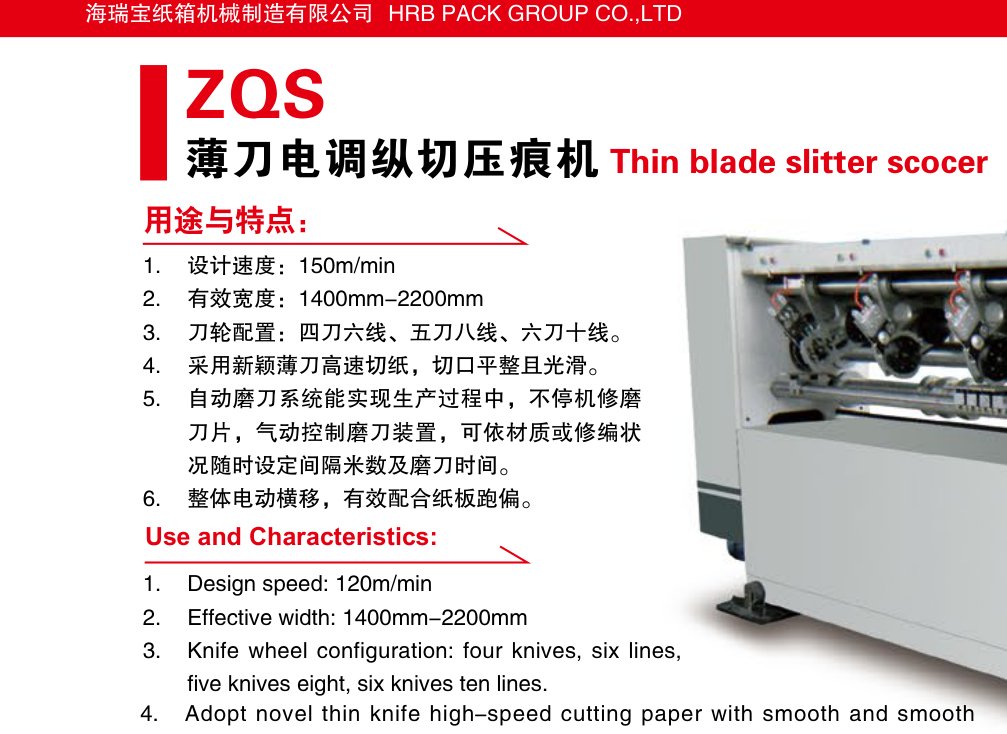

Thin-Blade Slitter-Scorer — ZQS
Electric-adjust thin-blade slitter-scorer with auto sharpening.
Key difference
Clean thin-blade slitting plus in-line scoring, with automatic blade sharpening that grinds without stopping the line and electric horizontal shift to follow web tracking.
| Specification | |
|---|---|
| Speed | 120–150 m/min |
| Effective width | 1400–2200 mm |
| Knife config | 4-6 / 5-8 / 6-10 knife-line |
| Sharpening | Automatic, non-stop |
| Shift | Electric horizontal |
Thin-Blade Slitter-Scorer — ZQS
Request a tailored quotation, full technical drawing and ROI. Installation, operator training and AMC included.
See it in action
Slitter-Scorer & Cut-off — in operation
Gallery
Return on investment
The numbers that matter
FAQ
Common questions
What is a slitter-scorer?
It slits the continuous board web to width and scores (creases) it along the run; a cross-cutter then cuts it to length into board sheets.
Request a quote
Interested in the Slitter-Scorer & Cut-off?
Tell us your board type, volumes and box styles. We reply within one business day with specs, pricing and a tailored ROI — plus installation and service terms.
