CorrXpert Series

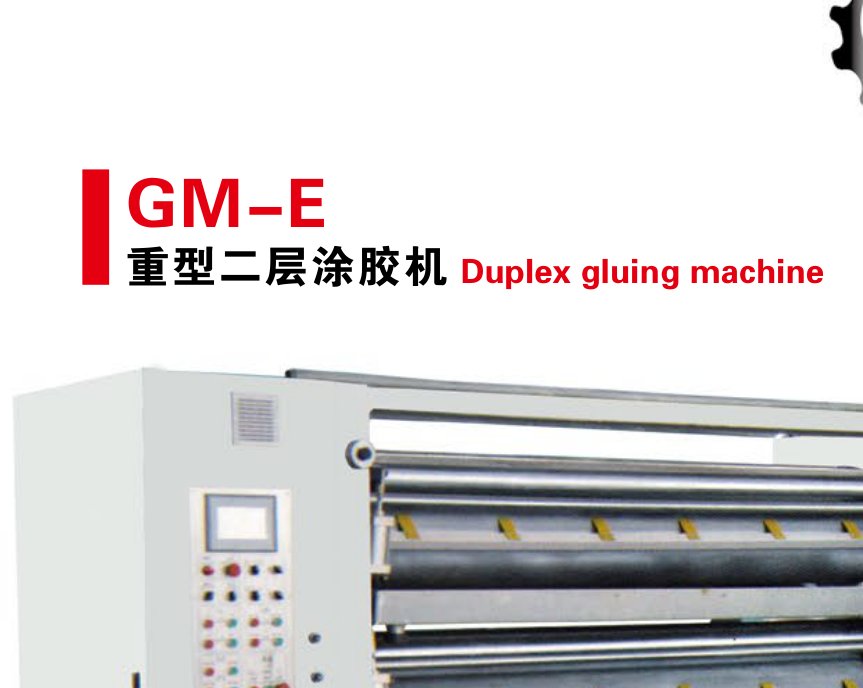

Duplex Gluing Machine
Heavy-duty two-layer gluing for the double-backer.
What is a corrugated board line?
On the double-backer side of a corrugated line, the gluing machine meters adhesive onto the flute tips of the single-face web before the second liner is bonded in the double facer. The heavy-duty GM-E runs at line speed with PLC-controlled glue gap.
The GM-E is a heavy two-layer gluing unit built for high-speed lines — glue-roller gap under PLC control for consistent, metered adhesive at up to 250 m/min, matched to the double facer.
Key benefits
- Heavy-duty two-layer gluing at line speed
- PLC-controlled glue gap for consistent coating
- Matched to 200–250 m/min double facer
- Even adhesive across full width
Usage & characteristics
- 01Heavy-duty two-layer (duplex) gluing for the double-backer side of the line.
- 02PLC-controlled glue-roller gap for consistent, metered adhesive.
- 03Matched to a 200–250 m/min double facer.
- 04Even adhesive application across the full board width.
- 05Independent glue circulation to prevent drying during stops.
Applications & industries
Specifications
- Model
- GM-E (heavy-duty duplex)
- Line speed
- up to 250 m/min
- Glue gap
- PLC controlled
Models
- Duplex Gluer — GM-EHeavy two-layer gluing unit for the double-backer.
Models
Models & specifications — CorrXpert Series
Each tab is a distinct model type. Where a type comes in several sizes, they are compared side by side.
Duplex Gluer — GM-E
Heavy two-layer gluing unit for the double-backer.
Key difference
Built for the double-backer side — heavy-duty two-layer gluing with PLC glue-gap control for consistent, metered adhesive at up to 250 m/min.
| Specification | |
|---|---|
| Type | Heavy-duty duplex gluer |
| Line speed | up to 250 m/min |
| Glue gap | PLC controlled |
Duplex Gluer — GM-E
Request a tailored quotation, full technical drawing and ROI. Installation, operator training and AMC included.
See it in action
Duplex Gluing Machine — in operation
Gallery
Return on investment
The numbers that matter
FAQ
Common questions
Where does the duplex gluing machine sit in the line?
On the double-backer side — it glues the single-face web before the second liner is bonded in the double facer.
Request a quote
Interested in the Duplex Gluing Machine?
Tell us your board type, volumes and box styles. We reply within one business day with specs, pricing and a tailored ROI — plus installation and service terms.
