CorrXpert Series
Double Facer
Bonds the outer liners to make finished board.
What is a corrugated board line?

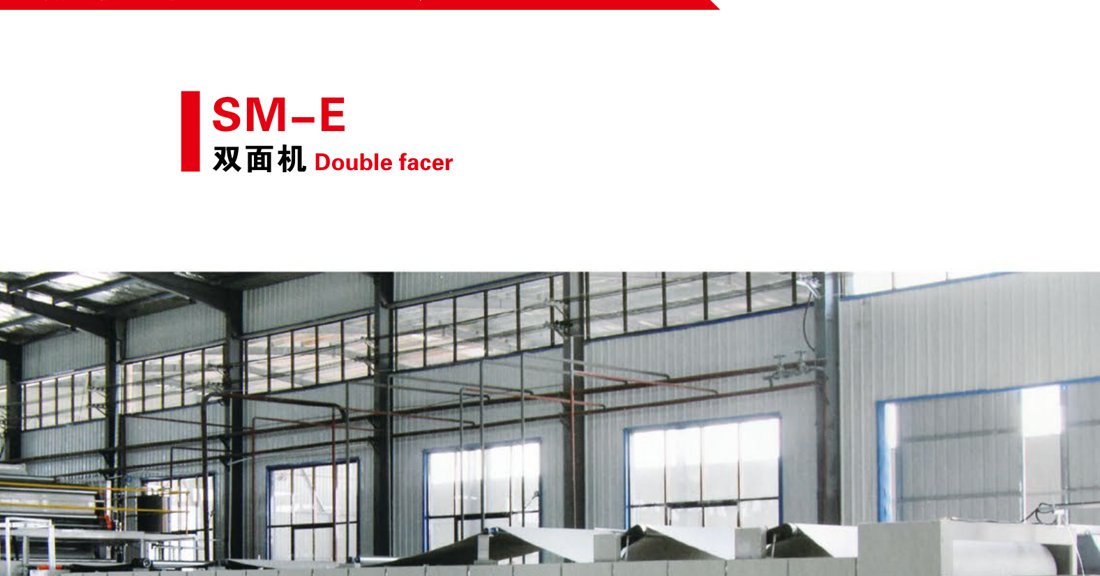

The double facer (double-backer) is the heated section that presses and bonds the liners to the corrugated web, then carries the board through a cooling/forming section to lie flat. The SM-E uses PLC-controlled hot plates and belt tension to suit any paper weight.
The SM-E runs at 200–250 m/min in widths of 1800–2500 mm. A PLC interface auto-switches the number of heating plates and the pressure to keep flute peaks intact across different paper weights. 18–22 hard-chromed hot plates (600 mm) with twin-cylinder S-type cotton-belt tensioning and auto belt-tracking.
Key benefits
- 200–250 m/min, widths 1800–2500 mm
- PLC auto-switch of heating-plate count & pressure
- 18–22 hard-chromed hot plates (600 mm)
- Twin-cylinder S-belt tensioning, auto tracking
- Protects flute peaks across paper weights
- Optional segmented pneumatic pressure
Usage & characteristics
- 01Design speed 200–250 m/min, working width 1800–2500 mm.
- 02PLC interface auto-switches the number of heating plates and the pressure to keep flute peaks intact across paper weights.
- 03Heating-plate surfaces are film-treated and hard-chromed; 600 mm wide, 18–22 plates selectable.
- 04Thermal pressure-plate structure with segmented pneumatic pressure adjustment (optional).
- 05Upper cotton belt uses twin-cylinder S-type tensioning with manual or automatic belt-deviation correction.
- 06Cooling / forming section delivers flat, square board.
Applications & industries
Specifications
- Model
- SM-E
- Speed
- 200–250 m/min
- Effective width
- 1800–2500 mm
- Hot plates
- 18–22 × 600 mm, hard-chromed
- Control
- PLC plate-count & pressure
Models
- Double Facer — SM-EPLC-controlled heated double-backer.
Models
Models & specifications — CorrXpert Series
Each tab is a distinct model type. Where a type comes in several sizes, they are compared side by side.
Double Facer — SM-E
PLC-controlled heated double-backer.
Key difference
Auto-adapts to the paper — PLC switches the number of hot plates and the pressure to keep flute peaks intact across paper weights, at 200–250 m/min up to 2500 mm wide.
| Specification | |
|---|---|
| Speed | 200–250 m/min |
| Effective width | 1800–2500 mm |
| Hot plates | 18–22 × 600 mm |
| Plate surface | Hard-chromed |
| Control | PLC plate-count & pressure |
Double Facer — SM-E
Request a tailored quotation, full technical drawing and ROI. Installation, operator training and AMC included.
See it in action
Double Facer — in operation
Gallery
Return on investment
The numbers that matter
FAQ
Common questions
What does a double facer do?
It bonds the outer liner(s) to the single-face corrugated web under heat and pressure, then cools and forms the board flat — producing finished 3, 5 or 7-ply board.
How does the SM-E handle different paper weights?
A PLC interface automatically switches the number of heating plates and the pressure to keep flute peaks intact across different paper grammages.
Request a quote
Interested in the Double Facer?
Tell us your board type, volumes and box styles. We reply within one business day with specs, pricing and a tailored ROI — plus installation and service terms.
