DuoFoldXpert Series
DuoFoldXpert Two-Sheets Folder Gluer
High-speed two-sheets folding & gluing, up to 2600 mm.
What is a folder gluer?
A two-sheets folder gluer folds and glues two blanks in parallel (or one very wide blank), forming large finished cartons at high speed. The DuoFoldXpert Series is built for wide-format converters: automatic suction paper feeding, folding, splicing and gluing sections handle large straight-line, lock-bottom and crash-lock cartons that exceed the range of a standard folder gluer.
The DuoFoldXpert Series is a high-speed two-sheets Carton Folder Gluer engineered for wide, high-volume work — up to 1250 × 1300 mm feeding size and 3000–5000 pcs/hour — on a heavy, heat-treated steel frame built for accuracy and longevity on long production runs. It comes in three model types: the flagship two-sheets LYA-2300/2600, the compact automatic LY-2300B, and the modular multi-station LY-2300 to LY-3500 — compared in detail below.
Key benefits
- Two-sheets folding & gluing for wide, large-format cartons
- Automatic suction paper feeding for stable, fast running
- 3000–5000 pcs/hour on large cartons
- Quick changeovers across a wide range of box styles
- Heavy, heat-treated steel frame for long production life
Usage & characteristics
- 01Two-sheets (two blanks in parallel) folding & gluing for the largest cartons.
- 02Automatic suction paper feeding with servo-motor independent drive and width-adjustable side flaps.
- 03Mechanical-roller gluing with hot and cold dipping (optional spray-glue system).
- 04Pre-fold, lock-bottom, folding and splicing sections with stepless variable-speed inflection belts.
- 05Patting section with separately-driven upper/lower guide plates and automatic belt tensioning.
- 06Splicing section: 5-guide-plate structure with electric (memory) screw-rod adjustment and 4×50 mm double-servo belts for accurate splicing.
- 07Heavy heat-treated steel frame for long production life.
Applications & industries
Specifications
- Models
- DuoFoldXpert 2300 / 2600
- Type
- High-speed two-sheets folder gluer
- Dimensions — 2300
- 13500 × 5300 × 1800 mm
- Dimensions — 2600
- 13500 × 5800 × 1800 mm
- Max feeding — 2300
- 1050 × 1150 mm
- Max feeding — 2600
- 1250 × 1300 mm
- Min feeding size
- 350 × 300 mm
- Speed
- 3000–5000 pcs/hour
- Weight
- 2300: 10 T · 2600: 13 T
- Total power
- 25.7 kW · 80 A
Models
- LYA-2300 / 2600High-speed two-sheets folder gluer (flagship) — for the largest cartons, two blanks in parallel.
- LY-2300BAutomatic two-sheets folder gluer — compact single-station model.
- LY-2300 / 2600 / 2900 / 3200 / 3500High-speed multi-station double-sheet folder gluer in five width sizes (2300–3500 mm). 3200 and 3500 specs available on request.
Models
Models & specifications — DuoFoldXpert Series
Each tab is a distinct model type. Where a type comes in several sizes, they are compared side by side.
LYA-2300 / 2600
High-speed two-sheets folder gluer (flagship) — for the largest cartons, two blanks in parallel.
Key difference
The biggest, fastest machine — runs TWO blanks in parallel for maximum output. A full 13.5 m line up to 13 T, 25.7 kW. Choose this for large-format corrugated cartons at volume.
| Specification | LYA-2300 | LYA-2600 |
|---|---|---|
| Type | High-speed two-sheets folder gluer | High-speed two-sheets folder gluer |
| Machine dimensions | 13500 × 5300 × 1800 mm | 13500 × 5800 × 1800 mm |
| Max feeding size | 1050 × 1150 mm | 1250 × 1300 mm |
| Min feeding size | 350 × 300 mm | 350 × 300 mm |
| Speed | 3000–5000 pcs/hour | 3000–5000 pcs/hour |
| Total rated current | 80 A | 80 A |
| Total power | 25.7 kW | 25.7 kW |
| Machine weight | 10 T | 13 T |
LYA-2300 / 2600
Available in 2 sizes. Request a tailored quotation, full technical drawing and ROI for the size you need. Installation, operator training and AMC included.

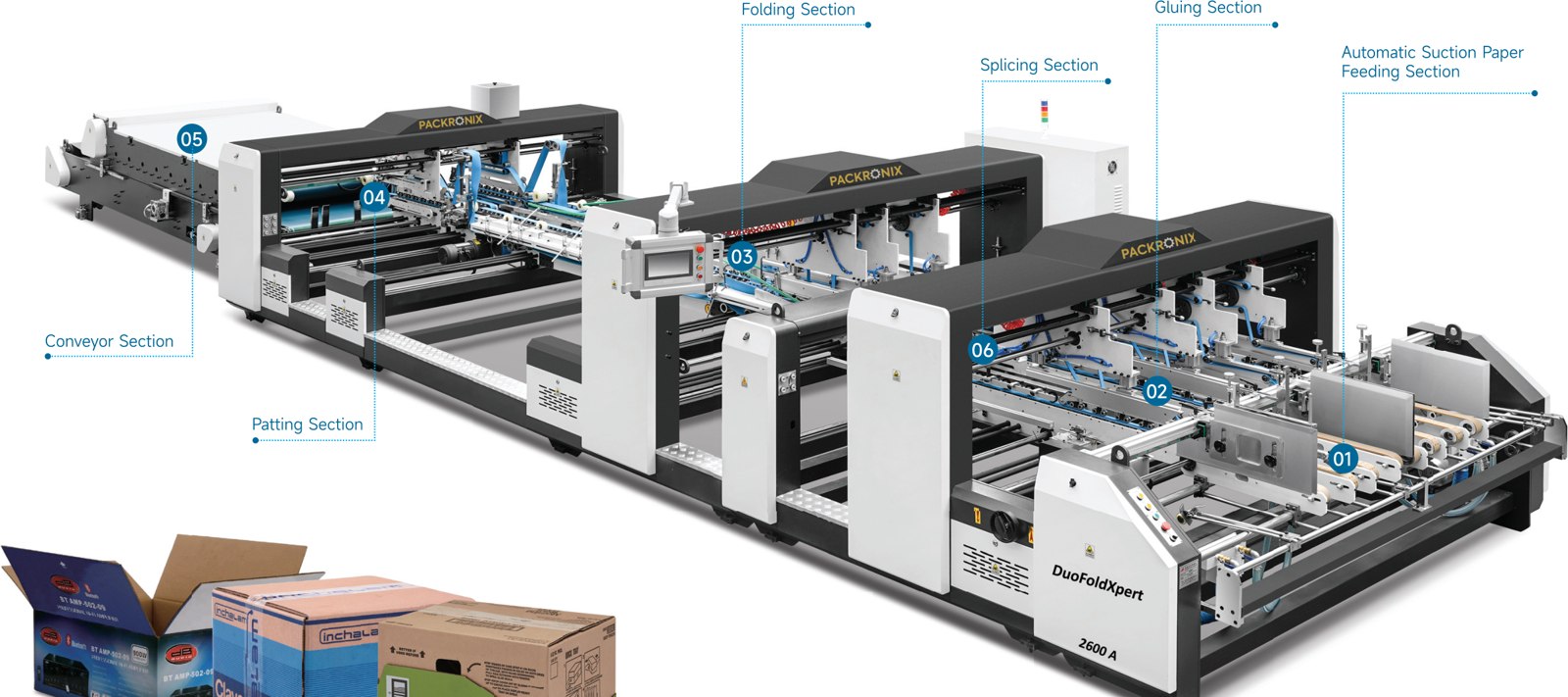

Inside the machine
Section by section

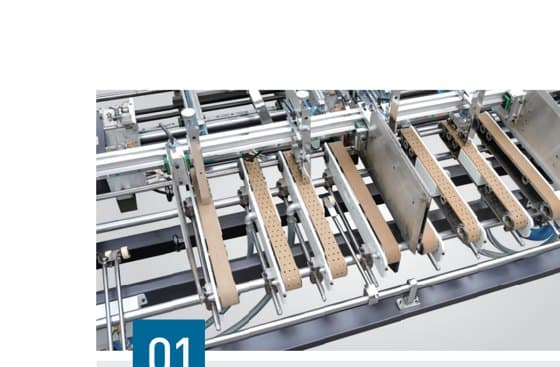

01Automatic Suction Paper Feeding Section
Friction feeder, configured with servo-motor independent drive. Side flaps adjustable in width direction; retractable paper-stack rear support for longer cassette type; double pieces used for air-suction function.

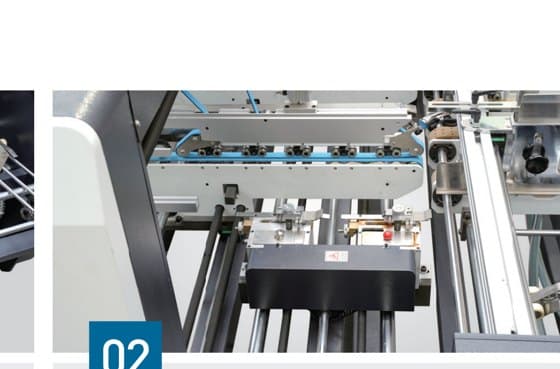

02Gluing Section
Mechanical roller to glue, divided into two methods — hot and cold dipping (optional spray-glue system).

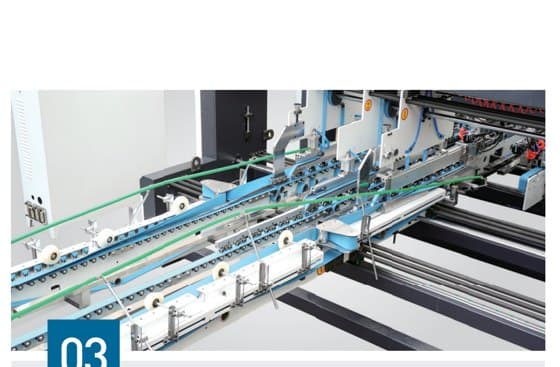

03Folding Section
Motor independent drive for smooth, accurate completion of the second folding line and the fourth folding line 180° combination. Left and right inflection belts have stepless variable-speed adjustment (servo configuration available); easy to disassemble and install.

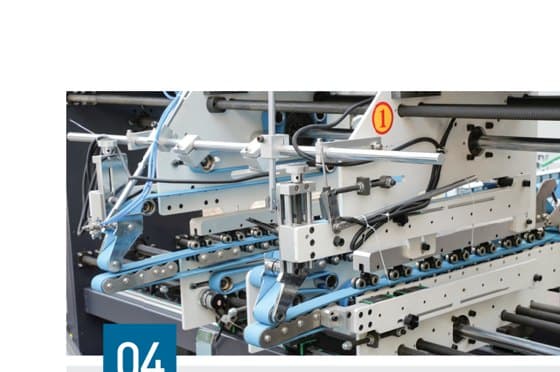

04Patting Section
Independently motor-driven; upper and lower pallets (guide plates) driven separately for separate length adjustment. Quick changeover, stacking / over-stacking, with automatic belt-tensioning system.

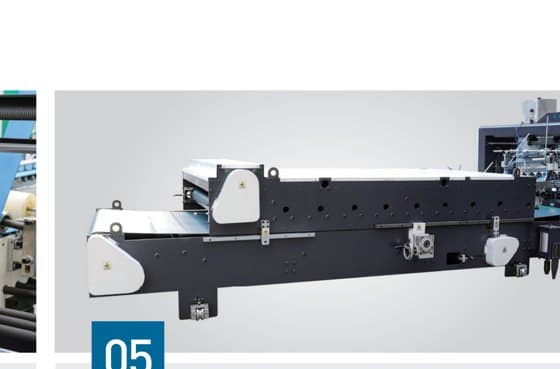

05Conveyor Section
Motor-driven, with manual and automatic (follow-up) operation modes. Depending on case length, the upper conveying pressure section is motor-driven and moves back and forth. Optional cylinder pressure-regulation system.

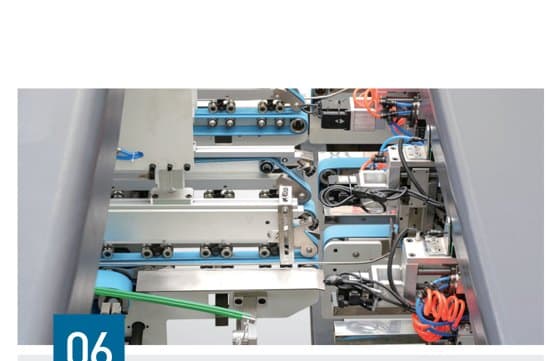

06Splicing Section
Four-big-and-one-small 5-guide-plate structure; each big plate uses a screw rod with electric adjustment (memory model available). 4 × 50 mm flat-belt conveyors with independent double servo motors for accurate splicing; gross material has 4 independent servo controls. Splicing mouth uses cold + hot double coating for a more solid dip box, with photoelectric device and servo motor for accuracy.
See it in action
DuoFoldXpert Two-Sheets Folder Gluer — in operation
Gallery
Return on investment
The numbers that matter
Output
Max width
Frame
FAQ
Common questions
What is a two-sheets folder gluer?
It folds and glues two blanks in parallel (or one very wide blank) into finished cartons at high speed — for large-format and corrugated work beyond a standard folder gluer.
How big a carton can the DuoFoldXpert handle?
Up to 1250 × 1300 mm feeding size, on machines up to 2600 mm wide, at 3000–5000 pieces per hour.
What are the three DuoFoldXpert model types?
LYA-2300/2600 — the flagship high-speed two-sheets machine for the largest cartons; LY-2300B — a compact single-station automatic for mid-volume work; and LY-2300 to LY-3500 — a modular multi-station series in widths from 2300 to 3500 mm.
How does it differ from the FoldXpert?
FoldXpert (850–1250A) suits standard cartons and light corrugated. DuoFoldXpert is the wide, two-sheets machine for large-format corrugated cartons up to 2600 mm.
