CorrXpert Series
Single Facer
Forms single-face corrugated — cassette & fingerless types.
What is a corrugated board line?
A single facer flutes the medium paper between corrugating rollers, applies glue to the flute tips and bonds a liner to one face, making single-face corrugated web. Cassette (drawer) types allow a 10-minute flute-roll change; fingerless adsorption types use vacuum to hold the web stable at high speed.
Negative-pressure design presses the medium evenly onto the flute and applies glue uniformly. Corrugating rollers are 48CrMo chrome-alloy steel, heat-treated and surface-ground to HRC58–60; air-bag pressure control and an independent glue-circulation system (which keeps running when the host stops) ensure consistent flutes. Simple touchscreen operation.
Key benefits
- Cassette type — quick 10-minute flute-roll change
- Fingerless adsorption — vacuum-held web, stable at speed
- Negative-pressure design for even gluing & flute profile
- 48CrMo flute rollers, HRC58–60, surface-ground
- Independent glue circulation prevents glue drying
- Touchscreen control
Usage & characteristics
- 01Negative-pressure design presses the medium evenly onto the flute and coats glue uniformly for a better single-face bond.
- 02Cassette flute-roll change in about 10 minutes — the roller is loaded by electric trolley and fixed to the machine base.
- 03Corrugating and pressure rollers use a high-stability air-bag control system.
- 04Glue volume set by electric adjustment; the gluing system runs independently when the host stops, preventing glue drying.
- 05Portable gluing system for easy maintenance and cleaning.
- 06Corrugating rollers in 48CrMo chrome-alloy steel, heat-treated and surface-ground to HRC58–60.
- 07Fingerless adsorption option uses vacuum to hold the web, with air-volume adjustment for stable flutes at high speed.
- 08Oil-bath reducer with universal-joint drive for low noise; high-temperature grease on roller bearings.
- 09Manual or electric separation device; simple touch-screen operation with value display.
Applications & industries
Specifications
- Types
- Cassette (drawer) · fingerless adsorption
- Speed
- up to 200 m/min
- Effective width
- 1200–2200 mm
- Flute rollers
- φ280 / φ320 / φ360 mm (48CrMo)
Models
- Cassette (Drawer) — SF-360E / 320EQuick-change cassette single facer — flute roll swapped in 10 minutes.
- Fingerless Adsorption — SF-320C / 280SFingerless, vacuum-adsorption single facer for clean, stable flutes.
Models
Models & specifications — CorrXpert Series
Each tab is a distinct model type. Where a type comes in several sizes, they are compared side by side.

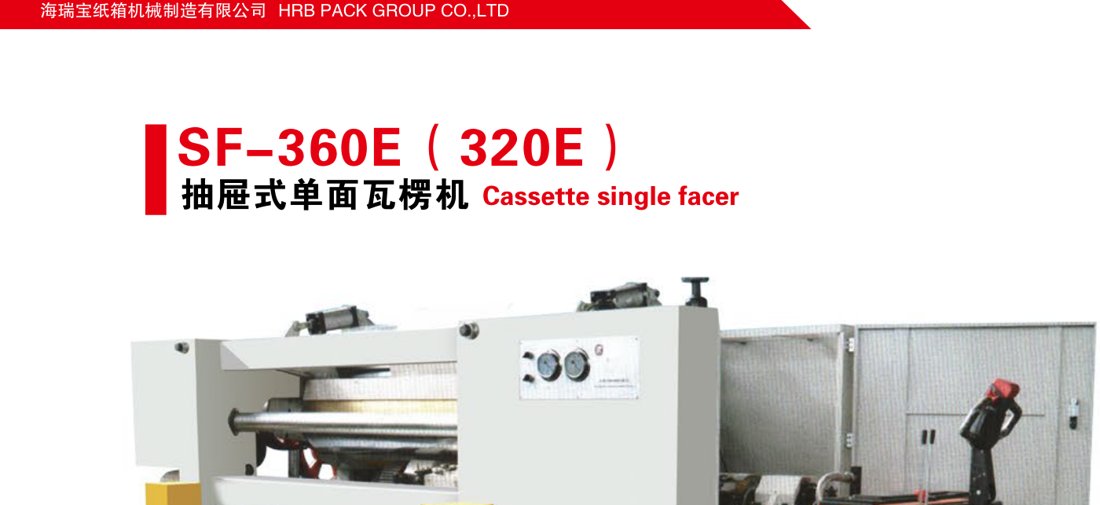

Cassette (Drawer) — SF-360E / 320E
Quick-change cassette single facer — flute roll swapped in 10 minutes.
Key difference
The high-speed production choice — a drawer/cassette flute-roll cartridge changes in about 10 minutes by electric trolley, so you switch flute profiles fast. Negative-pressure gluing, air-bag control, up to 200 m/min.
| Specification | SF-360E | SF-320E |
|---|---|---|
| Design speed | 200 m/min | 180 m/min |
| Effective width | 1400–2200 mm | 1400–2200 mm |
| Flute roller | φ360 mm | φ320 mm |
| Roll change | ~10 min (cassette) | ~10 min (cassette) |
| Control | Touchscreen | Touchscreen |
Cassette (Drawer) — SF-360E / 320E
Available in 2 sizes. Request a tailored quotation, full technical drawing and ROI for the size you need. Installation, operator training and AMC included.
See it in action
Single Facer — in operation
Gallery
Return on investment
The numbers that matter
FAQ
Common questions
What does a single facer do?
It flutes the medium paper and glues a liner to one side, producing single-face corrugated web — the first bonding stage of a corrugated board line.
Cassette vs fingerless — what is the difference?
Cassette (drawer) types swap the flute roll in ~10 minutes for fast profile changes; fingerless adsorption types use vacuum (no fingers) for cleaner flutes and stable high-speed running.
Request a quote
Interested in the Single Facer?
Tell us your board type, volumes and box styles. We reply within one business day with specs, pricing and a tailored ROI — plus installation and service terms.
